Automatic molding of sand mold casting for fan impeller

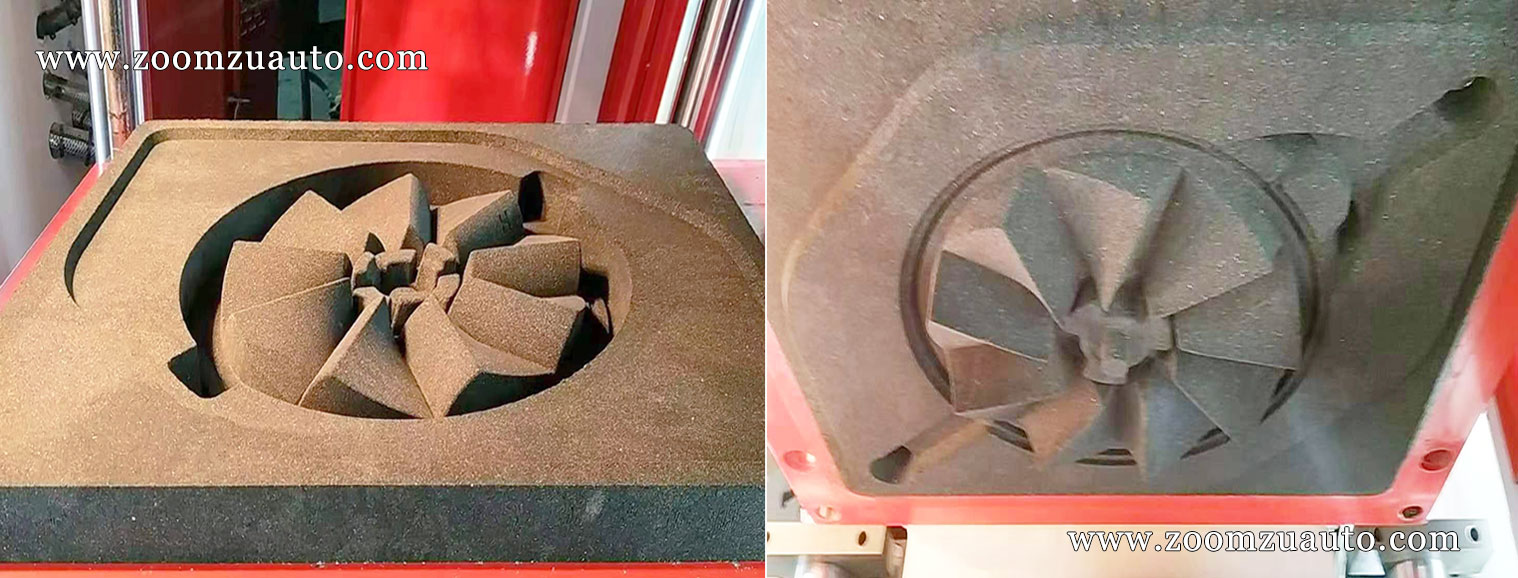

The sand mold automation molding effect of the fan impeller casting was completed using a conventional horizontal parting automation casting molding machine. The sand box size is 610mm X 710mm. The above is a picture of the sand mold parting surface after hydraulic compaction and mold demolding

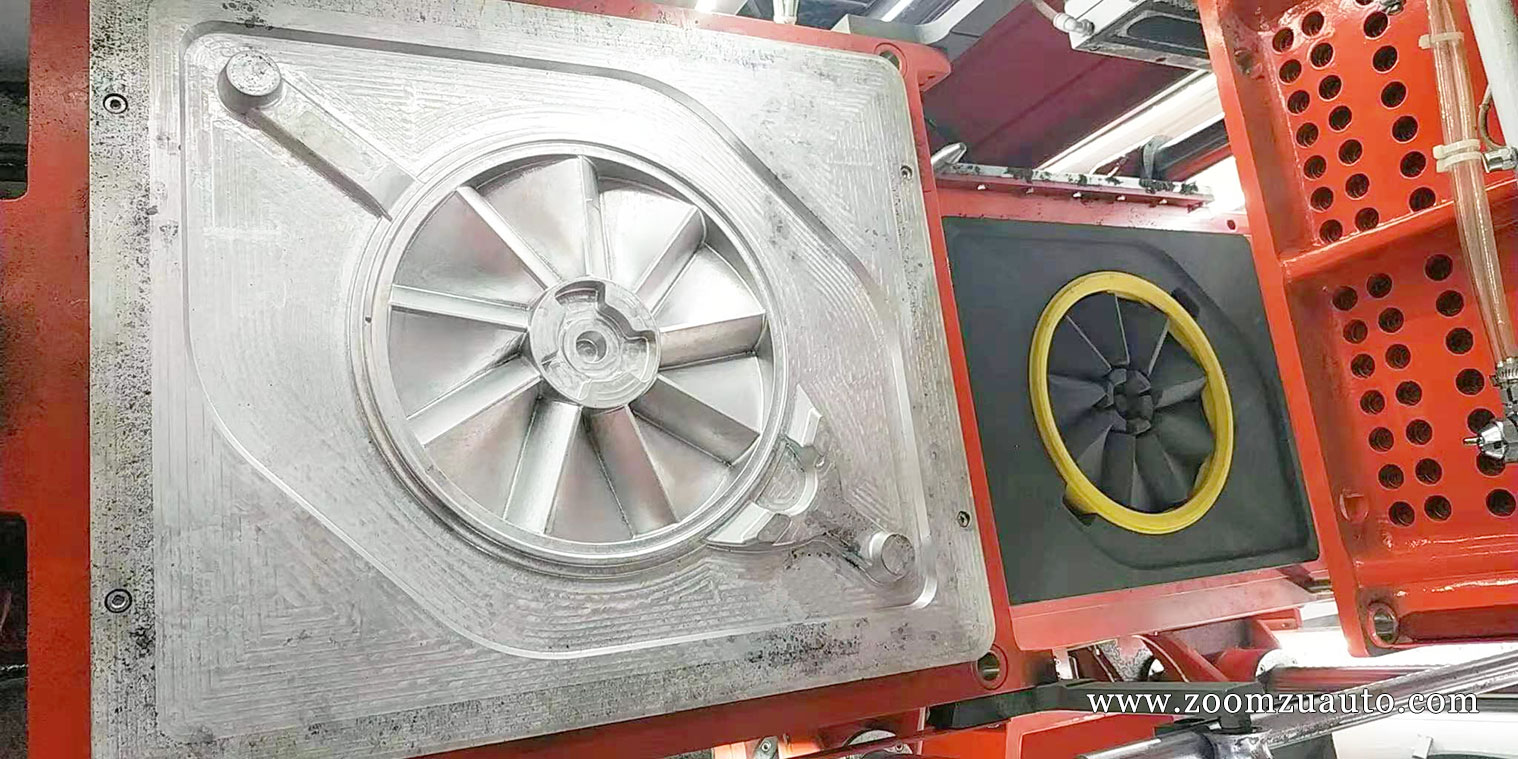

The effect diagram of the fan impeller mold and the sand mold cavity after placing the coated sand core for automatic molding of the horizontal parting automated casting molding machine;

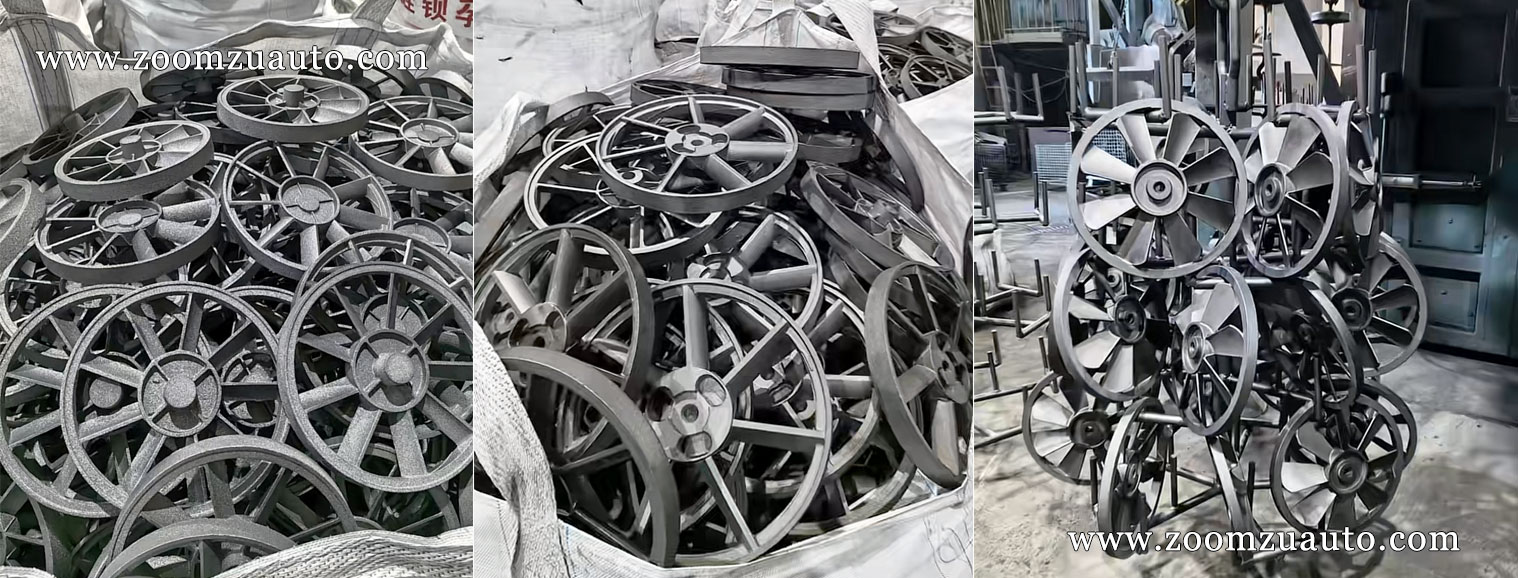

Various specifications of fan impeller castings are produced through the use of horizontal parting automated casting molding machines, resulting in high yield and small weight errors; Efficiency and casting quality have also been improved;
